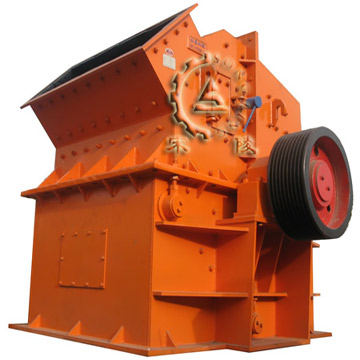

Fine crusher
ntroduction of fine crusher
The fine crusher also known as the efficient fine crusher ,is the third generation ,which save 50%energy than the traditional crusher .As the world most advanced fine crushing equipment ,it is suitable to fine and secondary crush various of hard and brittle materials such as abrasive ,cement ,quartz sand ,emery ,slag ,copper ore ,iron ore ,steel grit ,concrete aggregate ,asphalt aggregate .
Features of fine crusher
1 The series of crushers have two consecutive broken through double rotors ,without screen section equipment ,all kinds of wet residue can be crushed ,that is to say ,fished from the water of material also can be crushed at any time .No existing bond and plug phenomenon .Controlling material size is just to control the space between the crushing hammerheads .The common crusher will cause plug because the material stranded in the crushing cavity .And this will lead to relative parts increased wear .This crusher can avoid the phenomenon completely .
2 High alloy hammer ,the hammerhead and hammer handle combining toghter to use ,only to change the hammerhead ,not change the hammer handle .
3 The unique shift adjustable gap technology ,there is no need to repair the weared hammerhead ,moving the location for repeatedly use .A hammer is equal to three hammers in using .
4 The crusher is bi-directional rotation through continuous operation mode of two-way divisions .It is convenient for hammerhead and broken teeth board to wear evenly and reduce the frequency of stopping machine , replacement of wearing parts .
5 The uniform discharge size ,high ratio of crushing ,high yield ,low energy consumption ,crush material more than 20 ton per hour ,the cost of crushing per ton cinder is not more than 1.8 yuan .It is suitable for fine crushing those brittle materials ,no plug ,less dust ,low noise .
6 Shorten the time that the material stranded in the crushing chamber ,improve the life span of the wearing parts .
7 It is suitable for crushing brittle materials ,No plug,less dust ,low noise .
8 Easy installation improve the equipment degree of freedom largely .
Technical parameters of fine crusher
|
Model
|
Feeding
size(mm) |
Discharging size(mm)
|
Capacity
(t/h) |
Electric
power(kw) |
Weight
(t) |
|
PCX800×300
|
≤60
|
≤5(96%)
|
20-25
|
37
|
2.5
|
|
PCX800×600
|
≤60
|
≤5(94%)
|
35-50
|
45
|
4.7
|
|
PCX800×800
|
≤70
|
≤5(92%)
|
40-60
|
75
|
6.5
|
|
PCX1000×1000
|
≤80
|
≤5(91%)
|
60-90
|
90
|
8.8
|
|
PCX1000×1200
|
≤90
|
≤5(88%)
|
75-110
|
110
|
13.6
|
|
PCX1300×1200
|
≤100
|
≤5(86%)
|
120-145
|
160
|
19.5
|
|
PCX1300×1400
|
≤120
|
≤5(85%)
|
145-180
|
180
|
26
|
Note: The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
