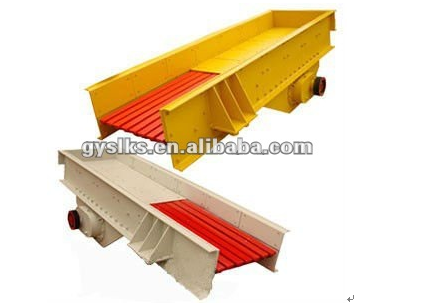

Vibrating feeder
Introduction of Vibrating feeder
Vibrating feeder can feed lump or granulated materials to the other devices evenly and continuously. In sand and gravel production line, the continuous feeding of the vibrating feeding machine helps avoid the blockage at receiving hopper. With easy flow adjustment, low noise and energy consumption, vibrating feeder is applied to crushing and screening production lines on crushing site, in mining, metallurgy, building material, chemistry, mineral processing, and coal industries.
Features of Vibrating feeder
1. Vibrating feeder enjoys simple structure, stable vibrating, even feeding, good continuous performance, adjustable excitation force, etc. Its flow rate can be conveniently changed and controlled.
2. It adopts eccentric block as the excitation source and features low noise, low energy consumption, good adjusting performance, and no material splashing.
3. Closed type vibrating feeder can prevent the pollution of dust.
4. The pressure caused by the material to the groove should be reduced to the greatest extend. The effective discharge opening should be smaller than the one quarter of the groove width. The flow rate should be controlled within 6-18m/min.
5. For feeding materials with a large quantity, a fender with enough height should be installed at the outlet. This fender should not be fixed to the feeder since it will affect the performance of the machine.
6. For smooth charging, the best discharging angle is 55° -65° .
1. Vibrating feeder enjoys simple structure, stable vibrating, even feeding, good continuous performance, adjustable excitation force, etc. Its flow rate can be conveniently changed and controlled.
2. It adopts eccentric block as the excitation source and features low noise, low energy consumption, good adjusting performance, and no material splashing.
3. Closed type vibrating feeder can prevent the pollution of dust.
4. The pressure caused by the material to the groove should be reduced to the greatest extend. The effective discharge opening should be smaller than the one quarter of the groove width. The flow rate should be controlled within 6-18m/min.
5. For feeding materials with a large quantity, a fender with enough height should be installed at the outlet. This fender should not be fixed to the feeder since it will affect the performance of the machine.
6. For smooth charging, the best discharging angle is 55° -65° .
Working Principles of Vibrating feeder
This vibrating feeder adopts an eccentric block to produce centrifugal force which makes the movable parts like screen box and vibrator move continuously in a circle or an approximate circle. The material then vibrates and jumps with the screen box on the tilted screen and is then continuously and equably discharged.
Technical Parameters of Vibrating feeder
|
Type
|
Size of funnel(mm)
|
Max.Feeding size(mm)
|
Capacity(t/h)
|
Power(kw)
|
Weight(kg)
|
Overall dimension(mm)
|
|
GZD-850×3000
|
850×3000
|
400
|
80-120
|
7.5
|
3895
|
3110×1800×1600
|
|
GZD-960×3800
|
960×3800
|
500
|
120-210
|
11
|
3980
|
3850×1950×1630
|
|
GZD-1100×4200
|
1100×4200
|
580
|
200-430
|
15
|
4170
|
4400×2050×1660
|
|
GZD-1100×4900
|
1100×4900
|
580
|
280-500
|
15
|
4520
|
5200×2050×1700
|
|
GZD-1300×4900
|
1300×4900
|
650
|
450-600
|
22
|
5200
|
5200×2350×1750
|
Note: The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
