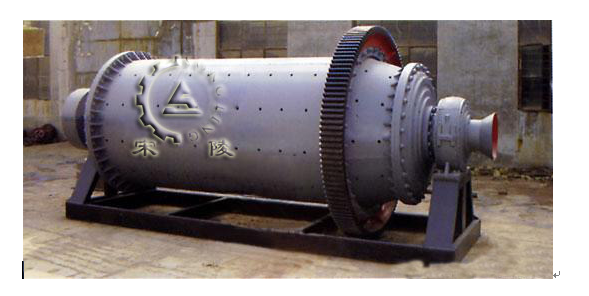

Tube mill
Tube mill|professional tube mill manufacturer





Application of tube mill
It is widely used in many kinds of manufacture industries ,including cement ,silicate ,new building material ,refractory material ,fertilizer ,ferrous metal ,nonferrous metal and glass ceramics.


Features of tube mill
With good wear resistance ,the machine works smoothly and reliably.

Technical parameters of tube mill
Model
Diameter of round pipes(mm)
Wall thickness of welded pipes(mm)
Speed of pipe welding(m/min)
Power of major motor(KW)
High frequency power(KW)
HC10
Φ0.3~Φ0.6inch
(Φ7mm~Φ16mm)
0.2~0.8mm
0~80m/min
15KW
60KW
HC20
Φ0.3~Φ1.0inch
(Φ8mm~Φ25mm)
0.3~1.2mm
0~80m/min
30KW
100KW
HC25
Φ0.3~Φ1.4inch
(Φ8mm~Φ32mm)
0.4~1.5mm
0~80m/min
37KW
100KW
HC28
Φ0.4~Φ1.5inch
(Φ10mm-Φ38mm)
0.4~1.8mm
0~80m/min
45KW
100KW
HC32
Φ0.5~Φ1.7inch
(Φ12mm~Φ42mm)
0.4~2mm
0~70m/min
55KW
100KW
HC45
Φ0.5~Φ2.0inch
(Φ13mm-Φ50mm)
0.4~2.2mm
0~70m/min
75KW
150KW
HC50
Φ0.8~Φ2.5inch
(Φ22mm~Φ63mm)
0.6~2.75mm
0~65m/min
90KW
200KW
HC60
Φ0.8~Φ3.0inch
(Φ22mm~Φ76mm)
0.8~3.5mm
0~65m/min
110KW
200KW
HC76
Φ1.3~Φ3.7inch
(Φ32mm~Φ95mm)
1.5~4mm
0~60 m/min
160KW
300KW
HC89
Φ1.5~Φ4.5inch
(Φ38mm~Φ114mm)
1.5~4.5mm
0~55m/min
200KW
300KW
HC114
Φ2.3~Φ5.0inch
(Φ60mm~Φ127mm)
  2~5mm
0~50m/min
250KW
400KW
HC165
Φ3.0~Φ6.5inch
(Φ76mm~Φ165mm)
  2~6mm
0~50 m/min
160*2KW
600KW
HC219
Φ4.5~Φ8.6inch
(Φ114mm~Φ219mm)
          3~8mm
0~40m/min
200*3KW
      800KW





























Note: The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
